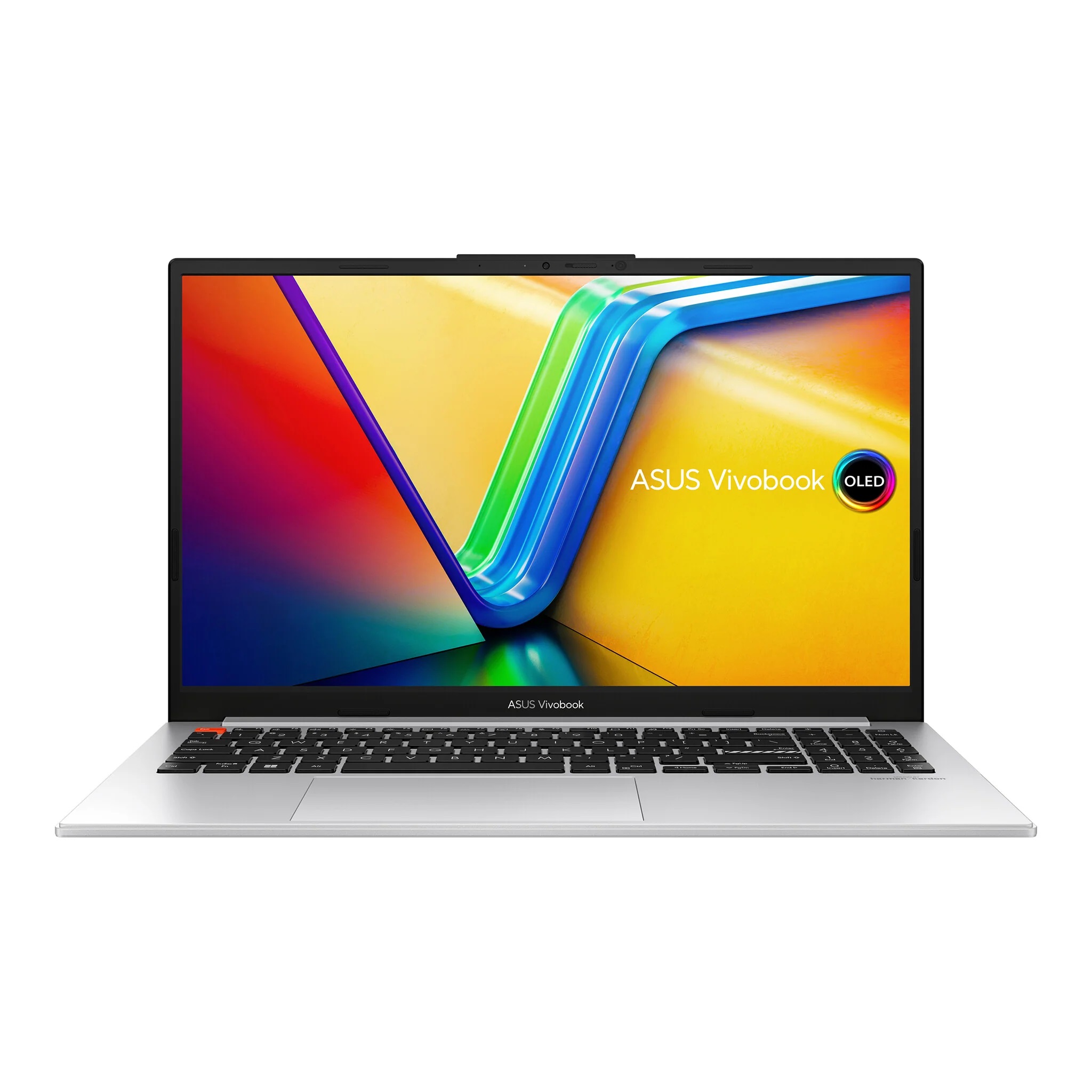

ASUS Vivobook S 15 OLED S5504VN-L1061W

Asus
Add to wishlist
Compare

£ 524

Design

Country of origin China
Introduction year 2023
Housing material Aluminium, Plastic
Form factor Clamshell
Colour name Cool Silver
Product colour Silver
Product type Laptop

Display

High Dynamic Range (HDR) technology HDR True Black 600
High Dynamic Range (HDR) supported Yes
Contrast ratio (typical) 1000000:1
Maximum refresh rate 120 Hz
Display response rise/fall 0.2 ms
RGB colour space DCI-P3
Colour gamut 100%
Maximum display brightness (HDR) 600 cd/m²
Display surface Gloss
Native aspect ratio 16:9
Panel type OLED
HD type Full HD
Touchscreen No
Display resolution 1920 x 1080 pixels
Display diagonal 39.6 cm (15.6″)

Processor

Configurable TDP-down 35 W
Processor cache 24 MB
Processor cores 14
Processor boost frequency 5 GHz
Processor model i7-13700H
Processor generation 13th gen Intel® Core™ i7
Processor family Intel® Core™ i7
Processor manufacturer Intel

Memory

Maximum internal memory 16 GB
Memory form factor On-board
Internal memory type LPDDR5-SDRAM
Internal memory 16 GB

Storage

Optical drive type No
SSD form factor M.2
SSD interface PCI Express 4.0
NVMe Yes
SSD capacity 1 TB
Number of SSDs installed 1
Total SSDs capacity 1 TB
Storage media SSD
Total storage capacity 1 TB

Graphics

Discrete graphics memory type GDDR6
Discrete graphics card memory 4 GB
On-board graphics card model Intel Iris Xe Graphics
On-board GPU manufacturer Intel
Discrete graphics card model Intel Arc A350M
Discrete GPU manufacturer Intel
Discrete graphics card Yes
On-board graphics card Yes

Audio

Built-in microphone Yes
Speakers manufacturer Harman Kardon
Audio system Smart Amp

Camera

Privacy type Privacy shutter
Privacy camera Yes
Front camera HD type Full HD
Front camera Yes

Network

Bluetooth version 5.3
Bluetooth Yes
Ethernet LAN No
Antenna type 2×2
Wi-Fi standards Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Mobile network connection No

Ports & interfaces

USB Power Delivery Yes
USB Type-C DisplayPort Alternate Mode Yes
Power adapter barrel connector 4.5 mm
Charging port type DC-in jack
Combo headphone/mic port Yes
Thunderbolt 4 ports quantity 1
Intel® Thunderbolt 4 Yes
HDMI version 1.4
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 2.0 ports quantity 1

Performance

Repairability index 7.5

Keyboard

Keyboard backlit Yes
Numeric keypad Yes
Pointing device Touchpad

Software

Trial software 1-month trial for new Microsoft 365 customers. Credit card required, McAfee LiveSafe 30 days
Operating system architecture 64-bit
Operating system installed Windows 11 Home

Processor special features

CPU configuration (max) 1

Battery

Battery capacity 70 Wh
Number of battery cells 3
Battery technology Lithium-Ion (Li-Ion)

Power

AC adapter output voltage 19 V
AC adapter output current 4.74 A
AC adapter input voltage 100 – 240 V
AC adapter frequency 50 – 60 Hz
AC adapter power 90 W

Security

Password protection type BIOS, User
Password protection Yes
Trusted Platform Module (TPM) Yes
Fingerprint reader Yes

Weight & dimensions

Height 17.9 mm
Depth 229.4 mm
Width 359.3 mm
Weight 1.7 kg

Packaging data

Package weight 2.57 kg
Package height 290 mm
Package depth 460 mm
Package width 65 mm

General

Product Family VivoBook
Product Series S 15 OLED

Logistics data

Commodity Classification Automated Tracking System (CCATS) 8471300000
